Galvanized Wire Mesh Decking Powder Coated for Warehouse / Supermarket

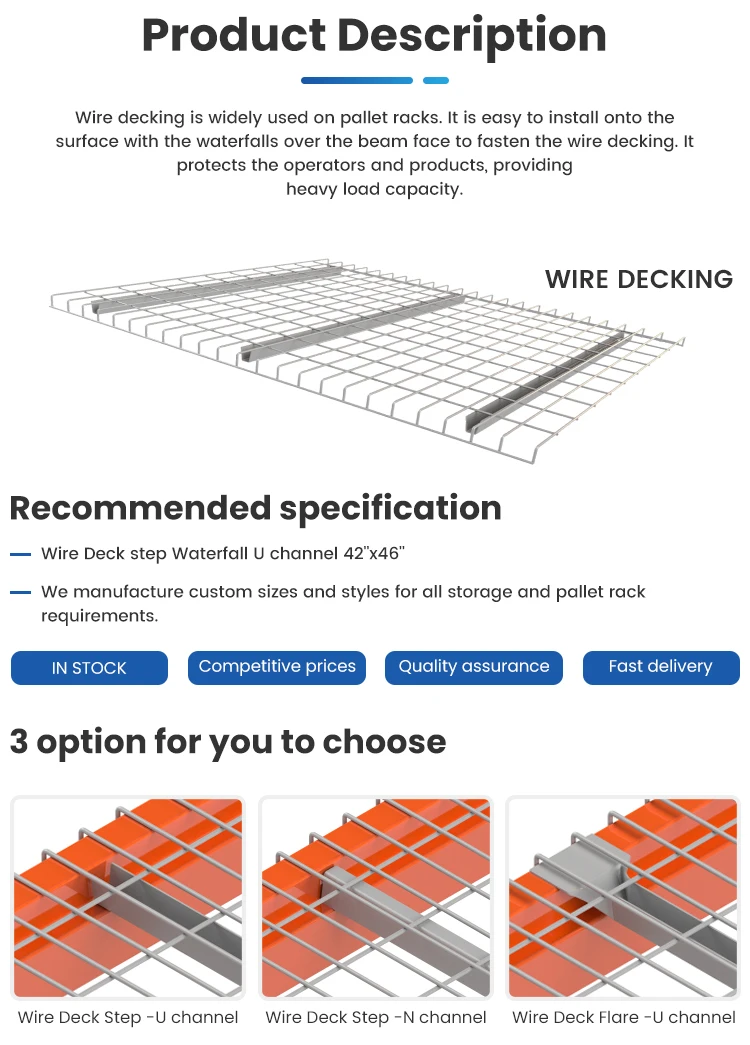

Warehouse wire decking makes it easy to store full pallet loads, bins, boxes and more. The design of the wire decking allows you to store a variety of inventory safely and all in the same place. Because the design is mesh, staff is able to clearly see the inventory, which cuts down on valuable time spent moving inventory to find a specific SKU. The channel supports give the wire decking its capacity. It’s important to note that loads need to be distributed evenly to avoid overloading a shelf.
We’re committed to supplying ISO 9001 quality wire mesh decking for pallet racks. We have the lowest prices on high quality, lightweight, heavy-duty welded warehouse wire decking. Our step deck is recognized for its superior strength, quality and exceptional value. Custom designable, our warehouse wire decking for pallet racks is made to fit the specific depth, length and load capacity of your rack system.
Technical
| Technical Parameters | Values |
| Product Name | Steel Wire Decking |
| Type | Flared Channel, U Channel, Support Bar |
| Mesh Gauge | 50*100mm, 50*50mm, 100*25mm |
| Safety | Fireproof |
| Material | Steel |
| Color | Galvanized, Powder Coating |
| Loading Capacity | 100kg-2000kg |
| Surface Treatment | Galvanized, Powder Coating |
| Mesh Size | As Required |
| Wire Diameter | 5.0mm |
| Light Duty Mesh Deck | 100kg-500kg |
| Heavy Duty Wire Decks | 500kg-2000kg |
| Durability | High |
Some standard sizes of wire mesh decking
Euro Sizes
| Euro Sizes |
| A. Loading capacity 300kg | B. Loading capacity 800kg | C. Loading capacity 1000kg |
| Mesh 50×150 mm | Mesh 50×100mm | Mesh 50×100mm |
| Dim (D×W) (mm) | Dim (D×W) (mm) | Dim (D×W) (mm) |
| 600×880 | 1000×880 | 1000×1340 |
| 1000×880 | 1050×880 | 1050×1340 |
| 1050×880 | 1100×880 | 800×1340 |
| 1100×880 | 1000×1090 | 1200×1340 |
American Sizes
| American Sizes |
| Standard U-channel | Flared channel |
| Dim (D×W) (mm) | Dim (D×W) (mm) |
| 24"×46" | 42"×46" | 24"×46" |
| 30"×46" | 42"×52" | 36"×46" |
| 36"×34" | 42"×58" | 36"×52" |
| 36"×46" | 48"×34" | 42"×46" |
| 36"×52" | 48"×46" | 42"×52" |
| 36"×58" | 48"×52" | 44"×46" |
| 42"×34" | 48"×58" | 48"×46" |
